Purchase note
The 433 pin conflicts with UART and cannot be used simultaneously.
2.4G conflicts with infrared when used.
The SD card program has a problem and will erase data.
The charging program is using the same pin as the buzzer, causing it to ring.Buzzer didnot solder but will send in the parcel.

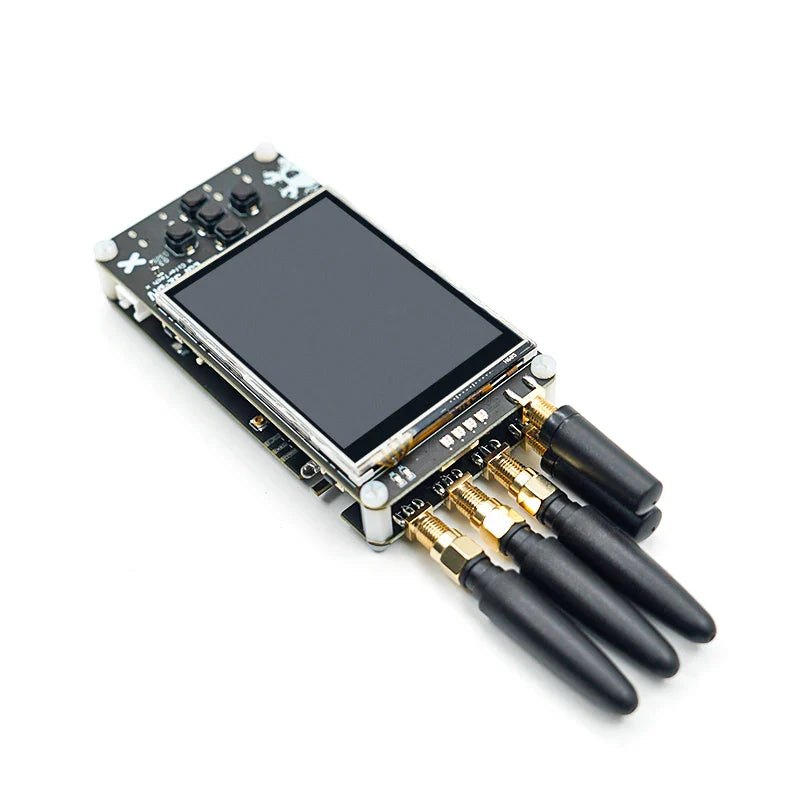

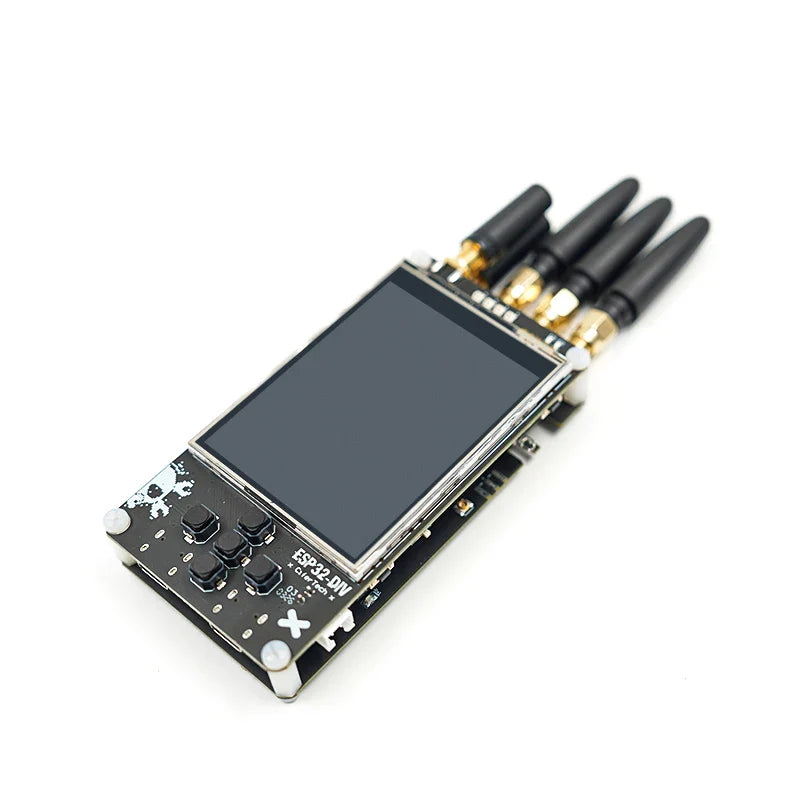

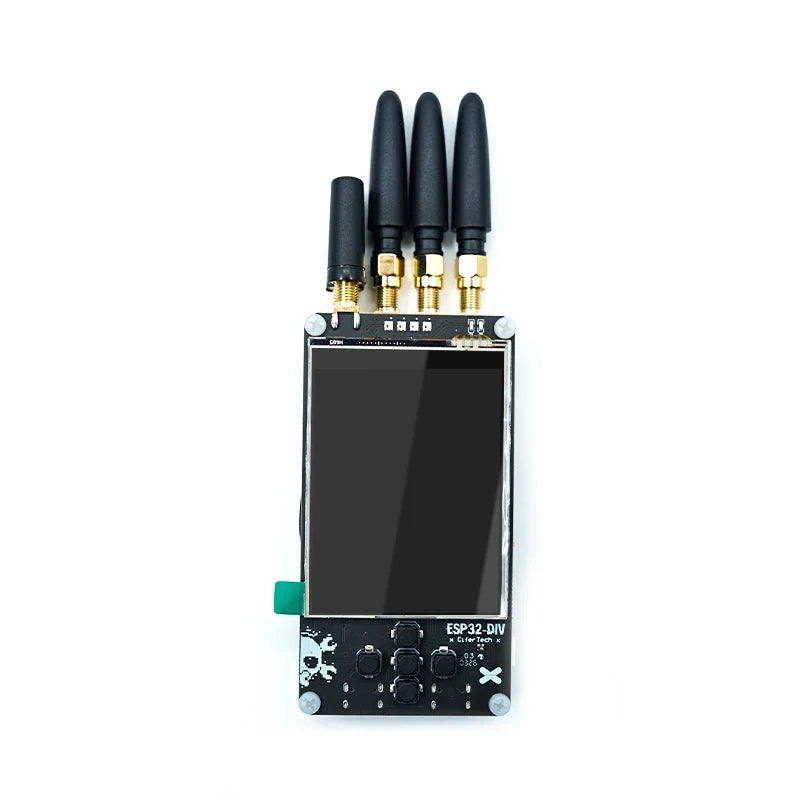

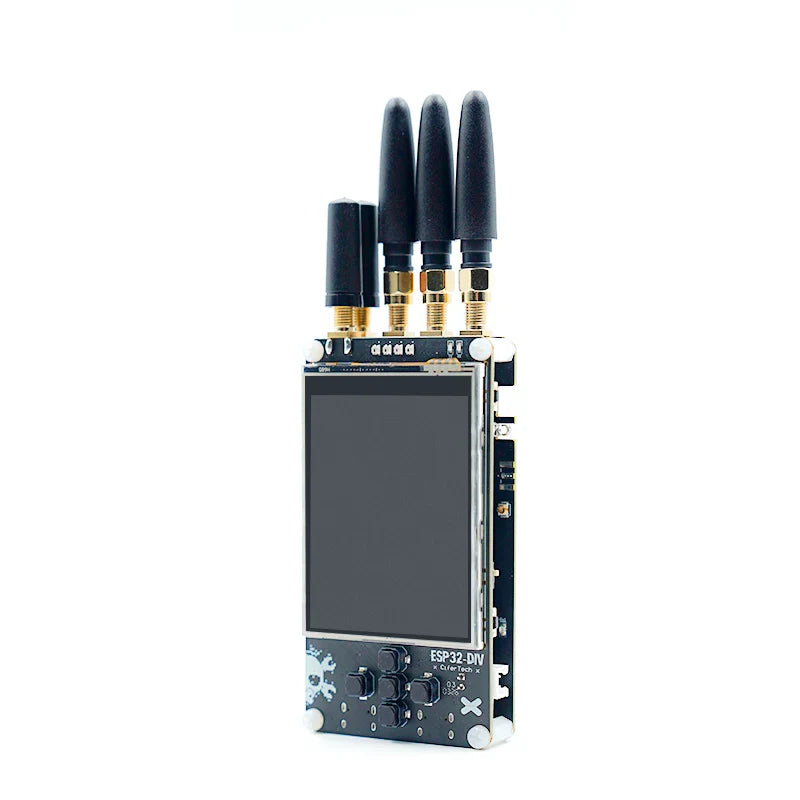

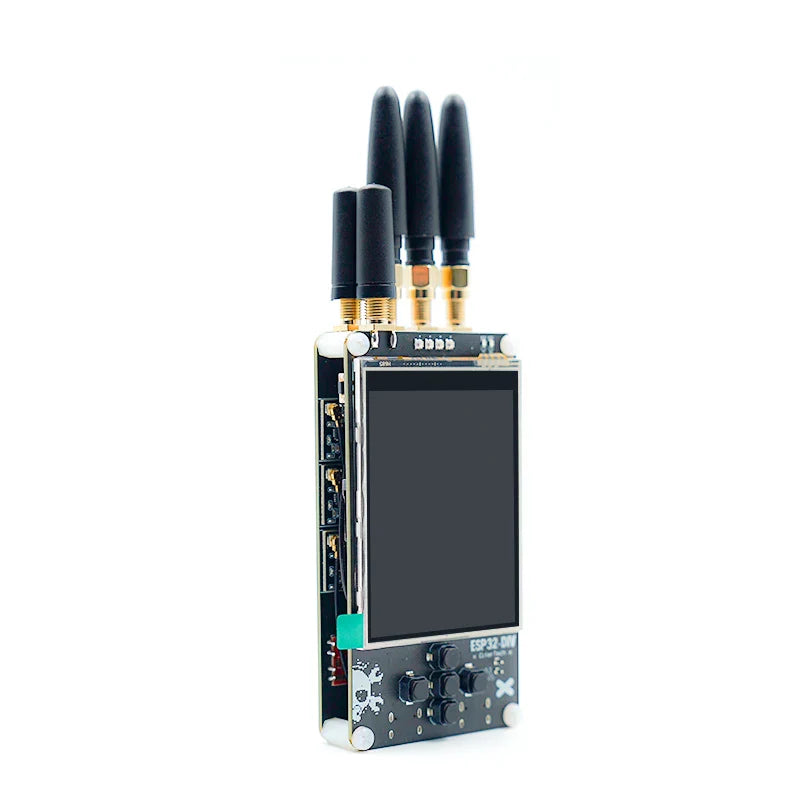

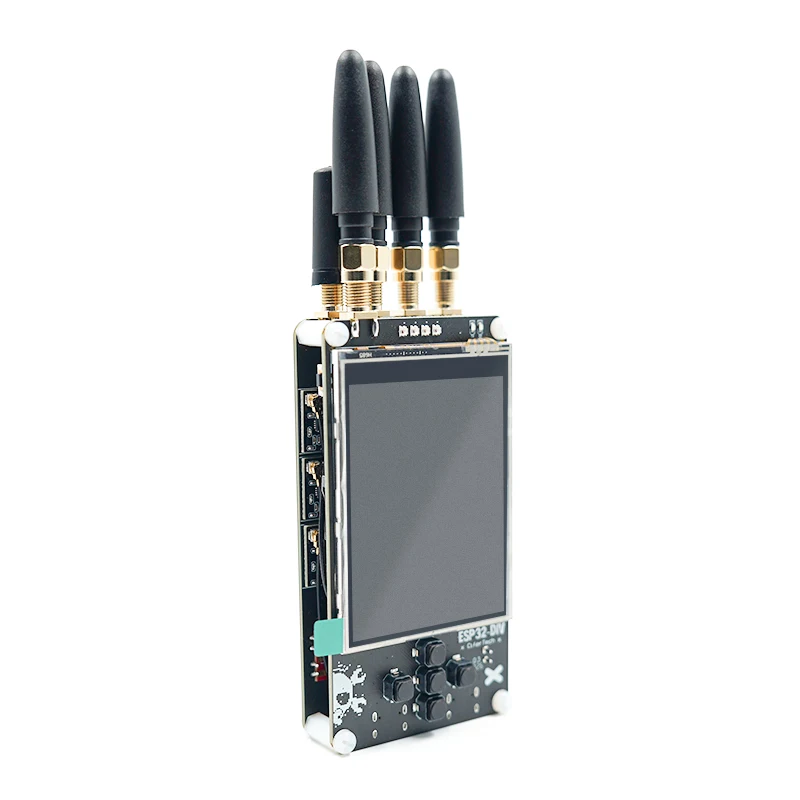

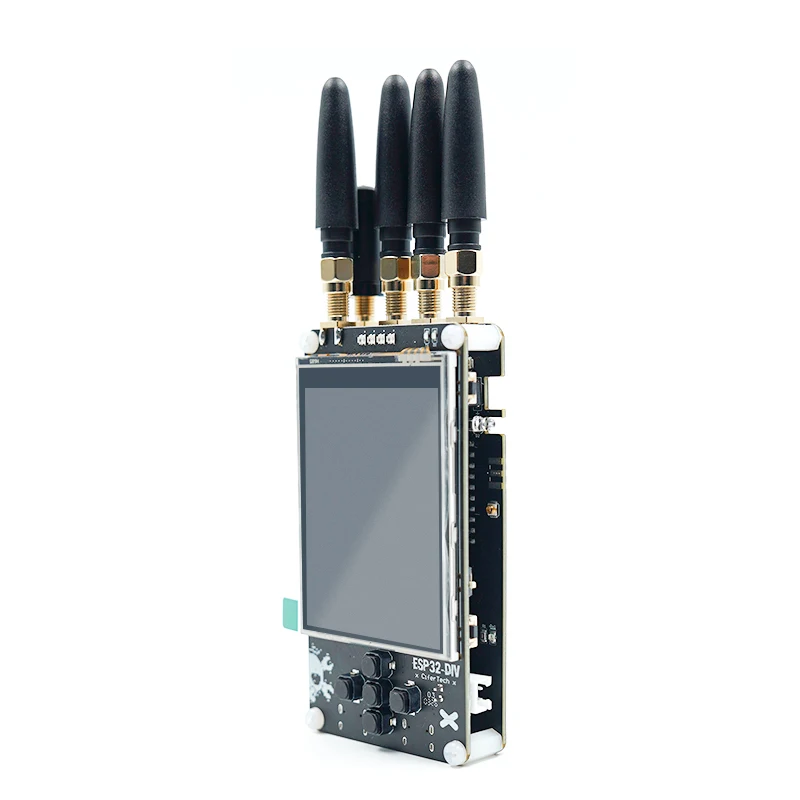

ESP32-DIV V2.0 Handheld Wireless Analysis & Testing Toolkit
The Ultimate Multi-Band Wireless Tool for IoT Developers and Security Researchers
[Product Overview]
The ESP32-DIV V2.0 is an upgraded, open-source handheld wireless toolkit designed for multi-band RF experimentation. Built on the powerful ESP32-S3 core, this version features a modular "Sandwich" design, integrating Wi-Fi, Bluetooth (BLE), 2.4GHz, and Sub-GHz capabilities into a single portable device.
[Key Upgrades in V2.0]
Processor Core: Upgraded to ESP32-S3 for better USB support and future expansion.
Modular Design: New Pogo-pin headers for a thinner, cleaner stack without bulky connectors.
Visual Feedback: Added 4x WS2812B RGB LEDs and an integrated Buzzer for real-time status alerts.
Power Management: Integrated IP5306 IC for stable battery charging and power delivery.
[Core Hardware Specifications]
Main Microcontroller: ESP32-S3 (with 16MB Flash).

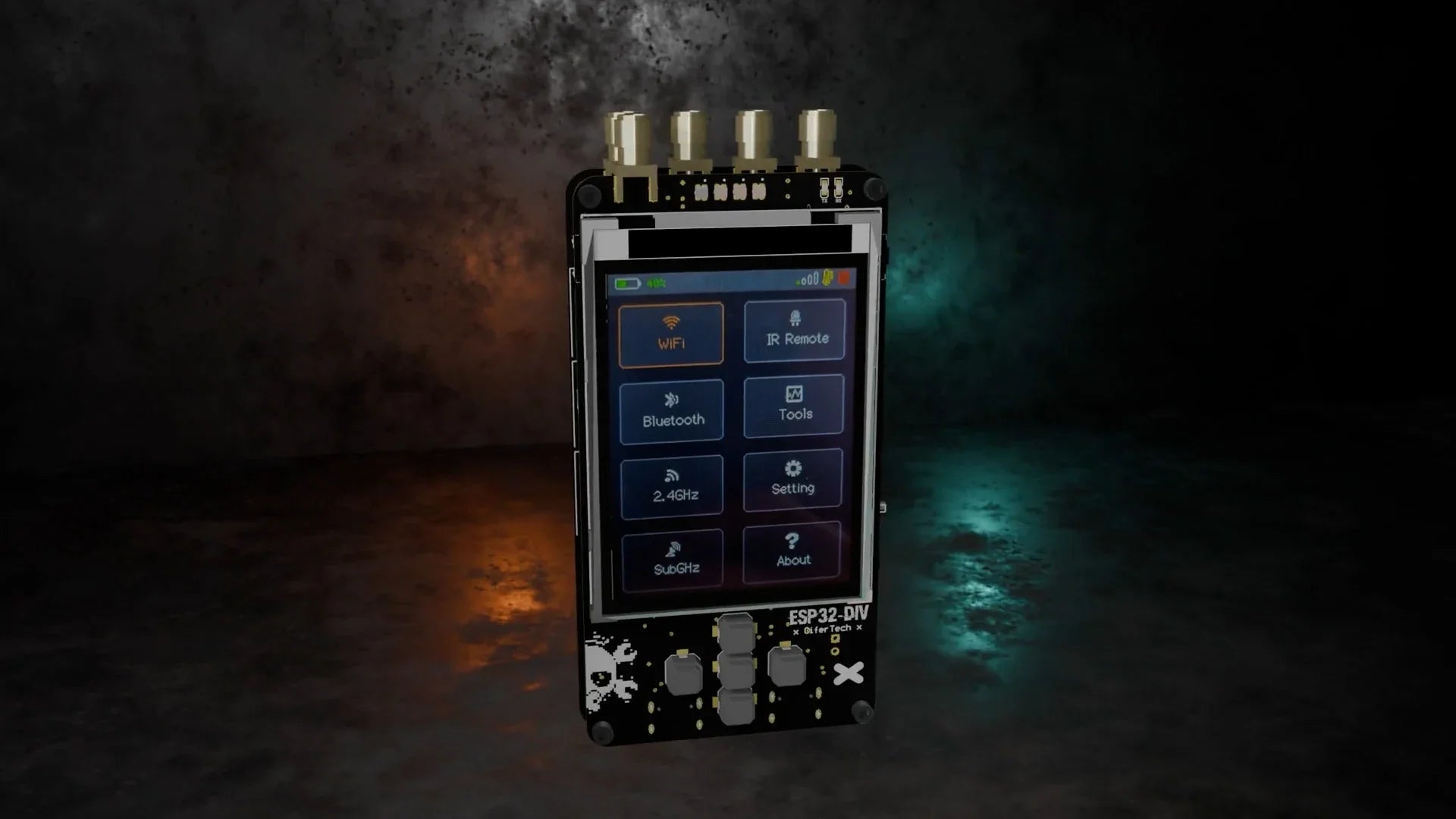

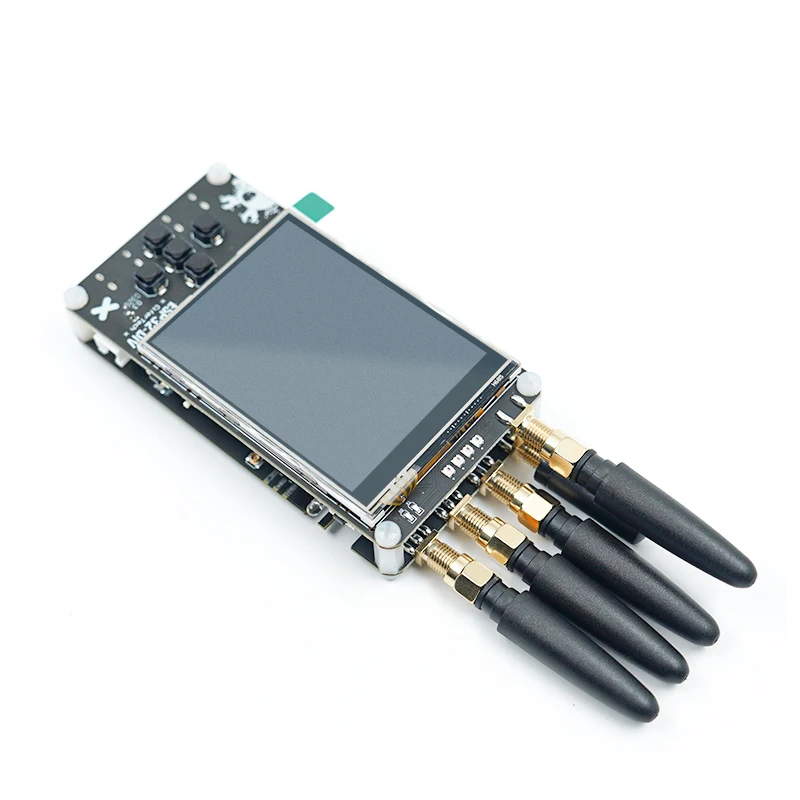

Display: 2.8-inch ILI9341 TFT Touchscreen for intuitive UI navigation.
RF Modules:
3x NRF24L01 modules for advanced 2.4GHz scanning and analysis.
1x CC1101 Sub-GHz transceiver for Sub-GHz protocol testing.
Storage: Built-in TF/SD Card Slot for logging Wi-Fi packets (PCAP) and storing signal captures.

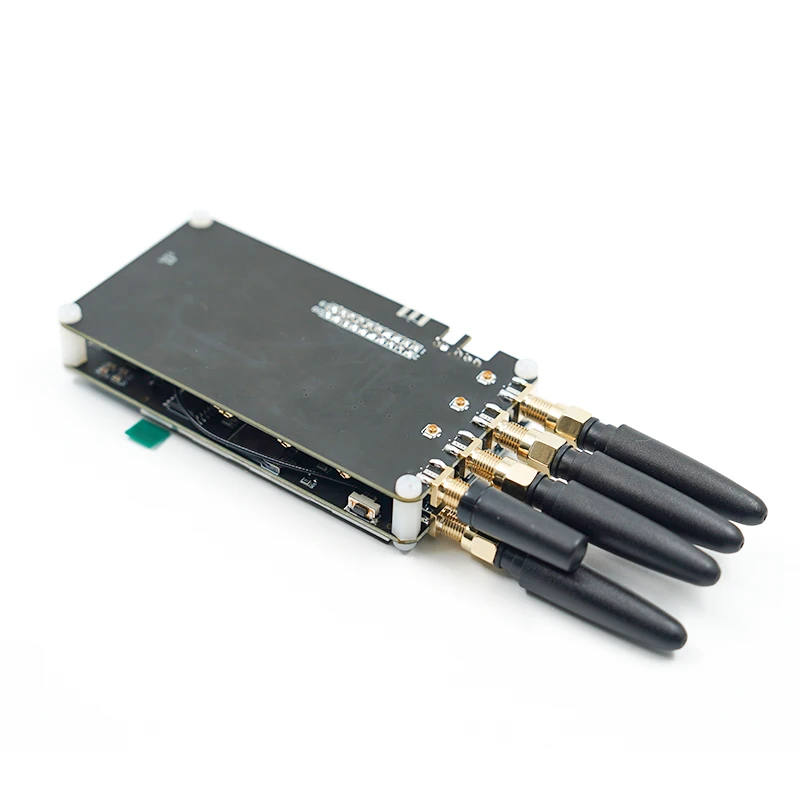

Connectivity: External SMA antenna connectors for maximum range and flexibility.
[Main Features & Tools]

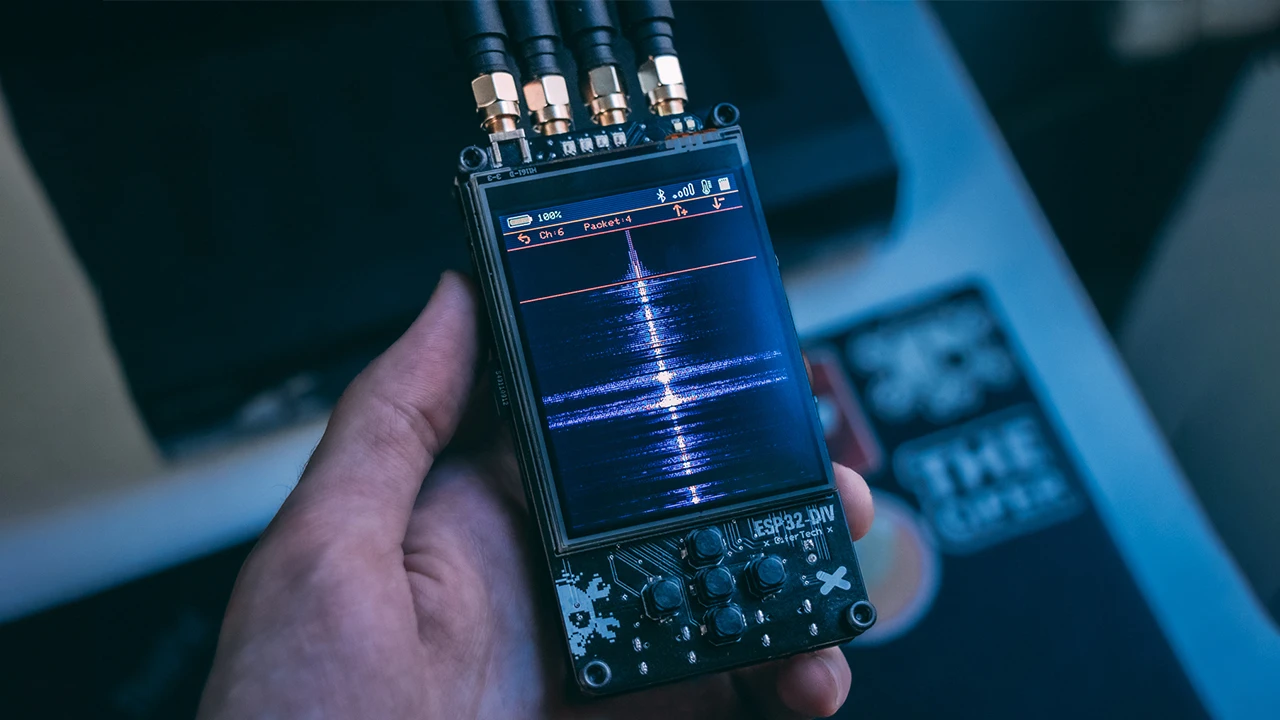

Wi-Fi Tools: Packet monitoring (Real-time waterfall graph), Beacon spammer, Deauth detector, and Wi-Fi scanner.
Bluetooth (BLE): Sniffing, spoofing, and testing BLE advertisements.
2.4GHz Spectrum: 128-channel scanner to detect Zigbee and proprietary RF protocols.
Sub-GHz Menu: Signal capture and Replay Attack features for garage doors and IoT sensors.
Infrared (IR): Capture, visualize, and reuse IR remote signals.
[Package List]
1 x ESP32-DIV V2.0 Main Board
1 x RF Shield (NRF24 + CC1101 Integrated)
1 x Set of Antennas (Based on selection)
1 x Buzzer
